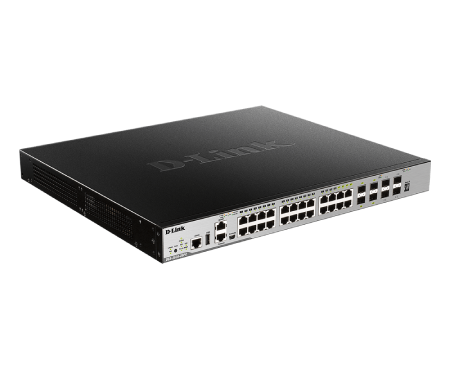

High performance, flexibility, fault tolerance, and advanced software features for SMBs, SMEs, large enterprises, and ISPs.
- 20 x 10/100/1000BASE-T PoE ports
- 4 x Combo 10/100/1000BASE-T PoE/SFP ports
- 4 x 10G SFP+ ports
- Supports IEEE 802.3af/at Power over Ethernet
- 6 kV surge protection on all RJ-45 access ports
- Switch Resource Management (SRM) for flexible management of system resources
- Redundant Power Supply (RPS) support
- MPLS L2VPM/L3 VPN support
- Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
- SDN-enabled switch, compatible with Openflow 1.3
Specifications
- 10/100/1000BASE-T PoE ports 20
- RJ-45 Alarm port 1
- RJ-45 and Mini-USB port 1
- USB 2.0 port 1
- Combo 10/100/1000BASE-T PoE/SFP ports 4
- 10G SFP+ ports 4
- RJ-45 Management port 1
- Switch Capacity 128 Gbps
- Max. Packet Forwarding Rate 95.24 Mpps
- Store & Forwarding Forwading Yes
- Maximum Heat Dissipation 1600.31 BTU/h
